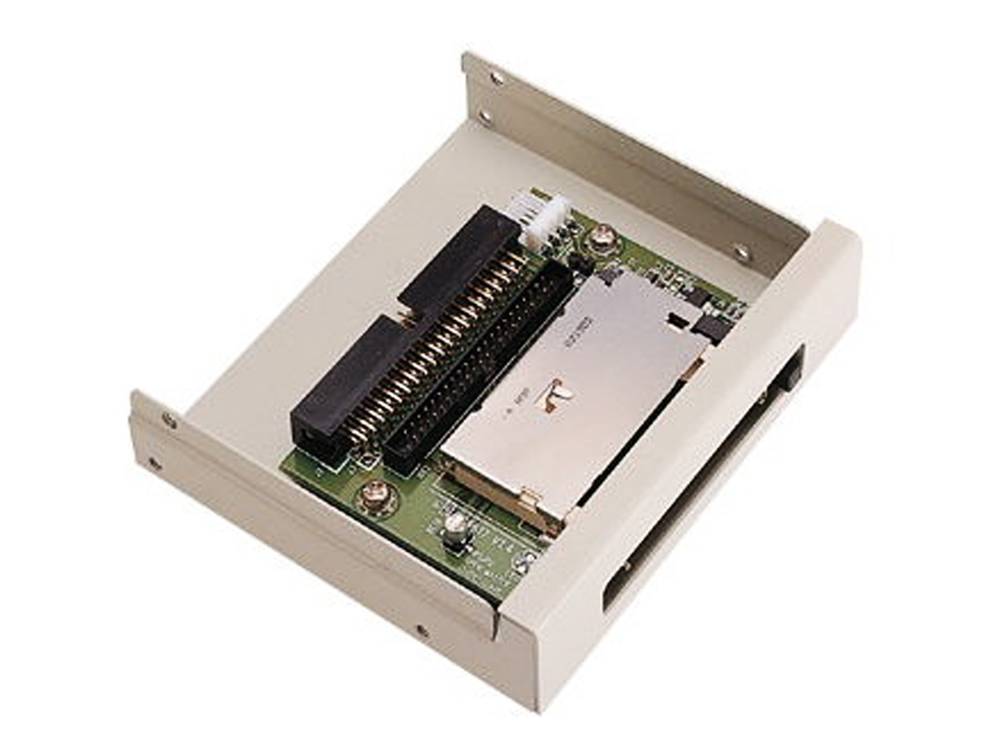

3.5" IDE to CompactFlash Disk Drive
Specifications |
Standard 3.5" FDD size |
FB4617 IDE to CF module inside |
1 CompactFlash socket and ejector |
Supports Type-I/II CompactFlash and MicroDrive. |
1 40-pin 2.54mm IDC connector |
1 44-pin 2.0mm IDC connector |
1 access LED and 1 active LED. |
+5V only, 0.1A maximum |
1 4-pin power connector |
1 access LED. |
Dimension: 102(W) x 90(D) x 26(H) mm |
